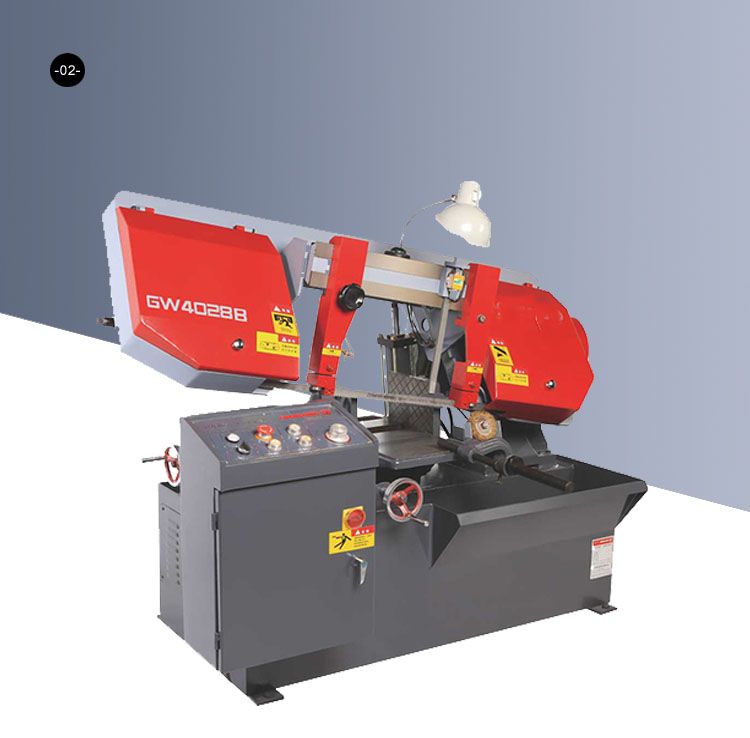

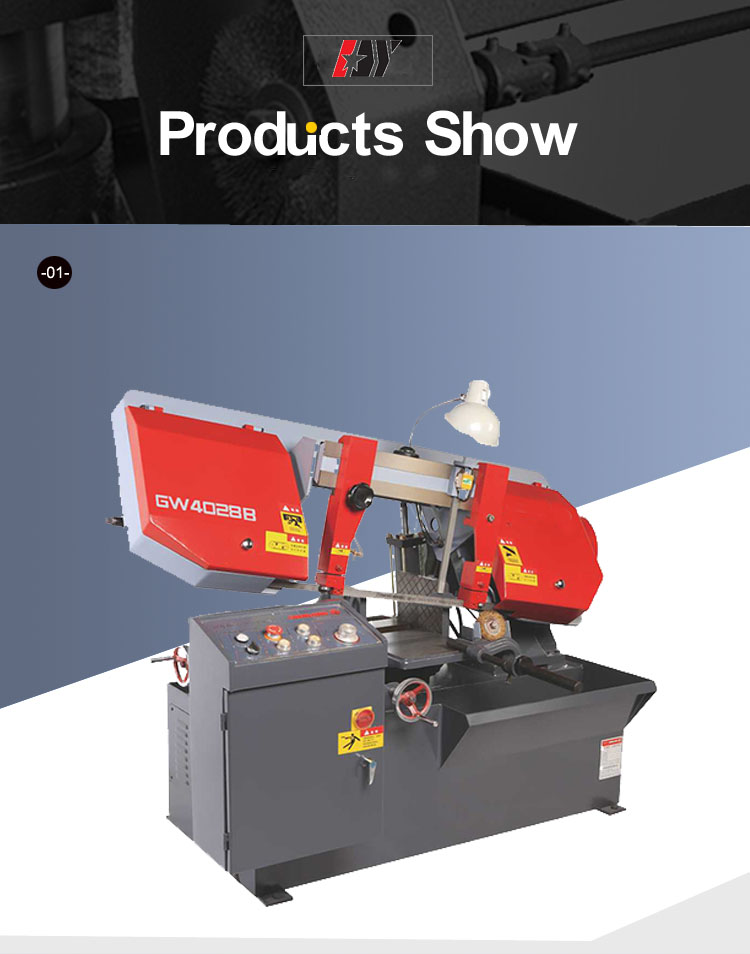

Horizontal bandsaw for metalworking

Horizontal bandsaw for metalworking

Feature:

● Hydraulic control saw cutting feed speed, stepless adjustable;
● Belt saw blade adopts rolling bearing and carbide alloy guide to prolong the service life of saw blade;
● Fast forward, automatic changeover, increase work efficiency;
● According to customer demand for small materials into a beam sawing device.
Specification:

Sawing Capacity(mm)	280 / 300w x 220h	Band saw wire speed(m/min)	25 / 35 / 45 / 60 / 80
Band saw wire specifications(mm)	27 x 0.9 x 3505	Main motor power(kw)	2.2（4p）
Hydraulic motor(kw)	0.37	Cooling pump(kw)	0.06
Work clamping method	Hydraulic vice	Saw blade tensioning method	Manual
Main drive structure	Worm gear drive	Feeding mode	Auxiliary mixing
Height of table(mm)	620	Overall size(mm)	1770 x 1130 x1160
