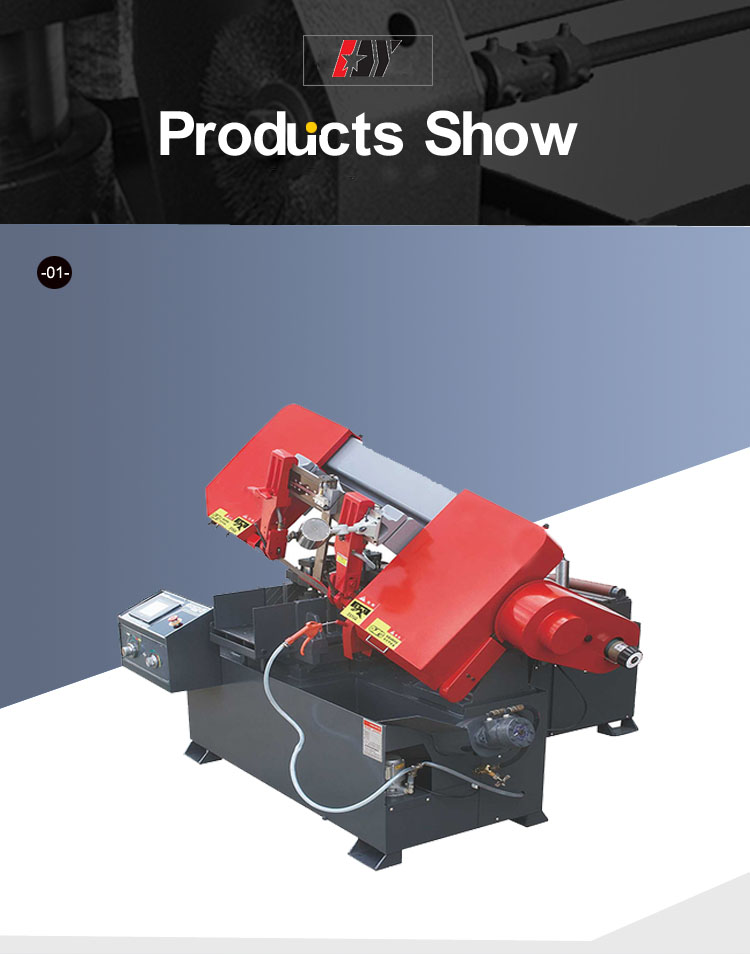

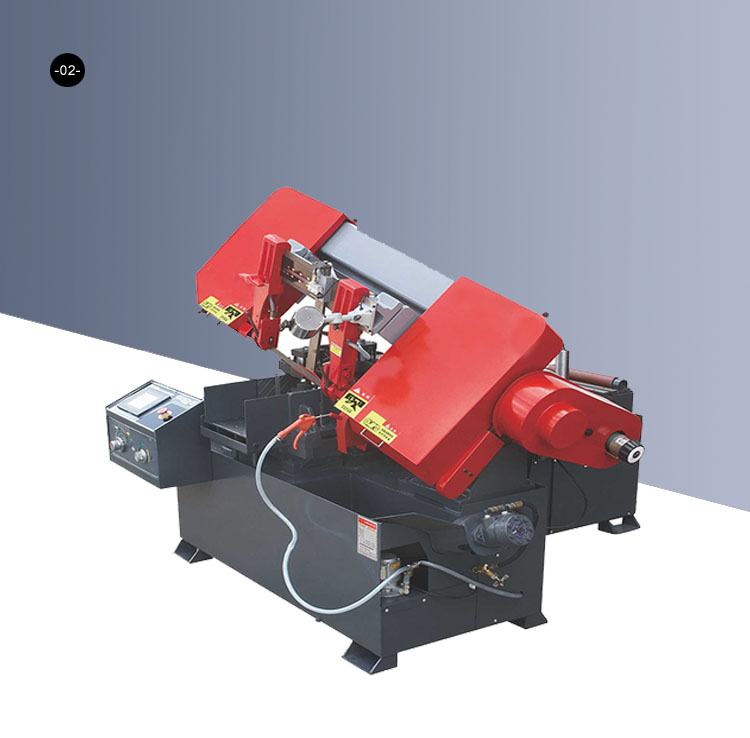

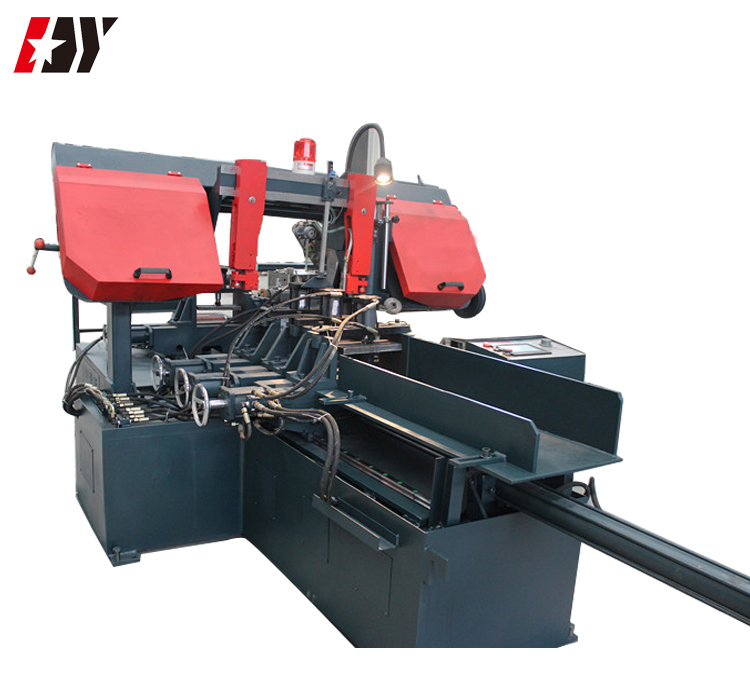

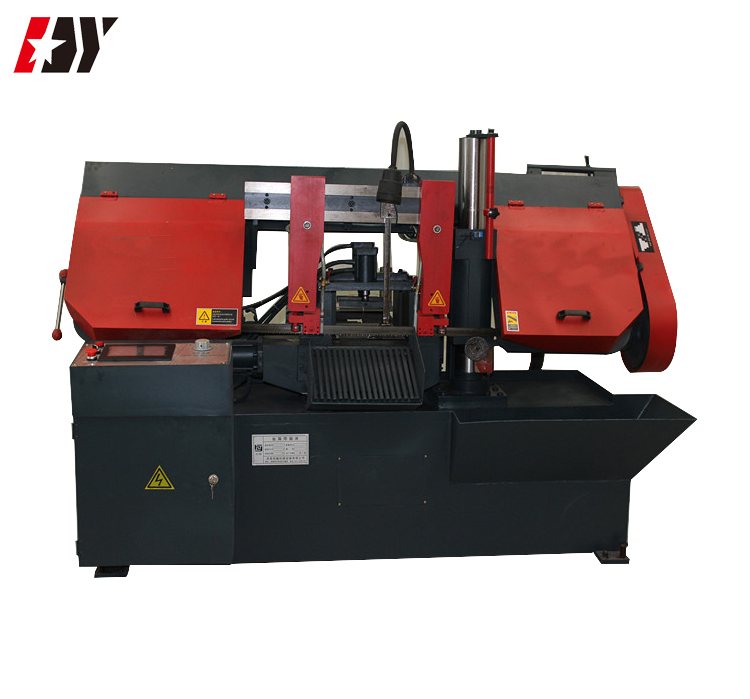

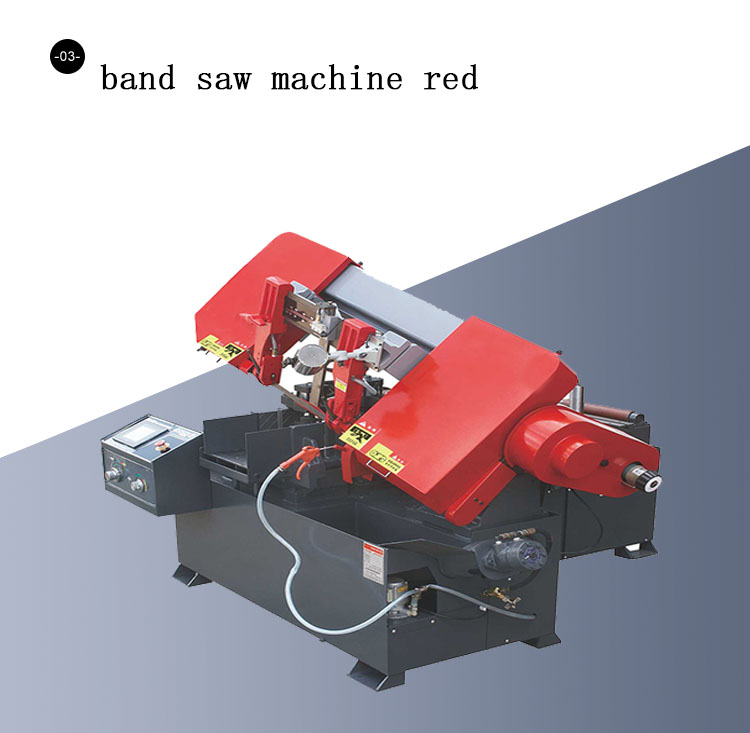

Horizontal metal band sawing machine In China

Future:

1.Mainly used for sawing all kinds of ferrous and non-ferrous metals;
2.The utility model has the advantages of reasonable structure, stable performance, high reliability and high precision, and is an ideal device for cutting medium and small batches.
Specification:

Sawing Capacity(mm)	280 / 350w x 250h	Band saw wire speed(m/min)	20~90
Band saw wire specifications(mm)	27 x 0.9 x 3505	Main motor power(kw)	2.2（4p）
Hydraulic motor(kw)	0.75	Cooling pump(kw)	0.06
Work clamping method	Hydraulic vice	Saw blade tensioning method	Manual
Main drive structure	Worm gear drive	Feeding mode	Automatic feeding
Height of table(mm)	690	Overall size(mm)	2100 x 1800 x1650
