PLC band saw machine

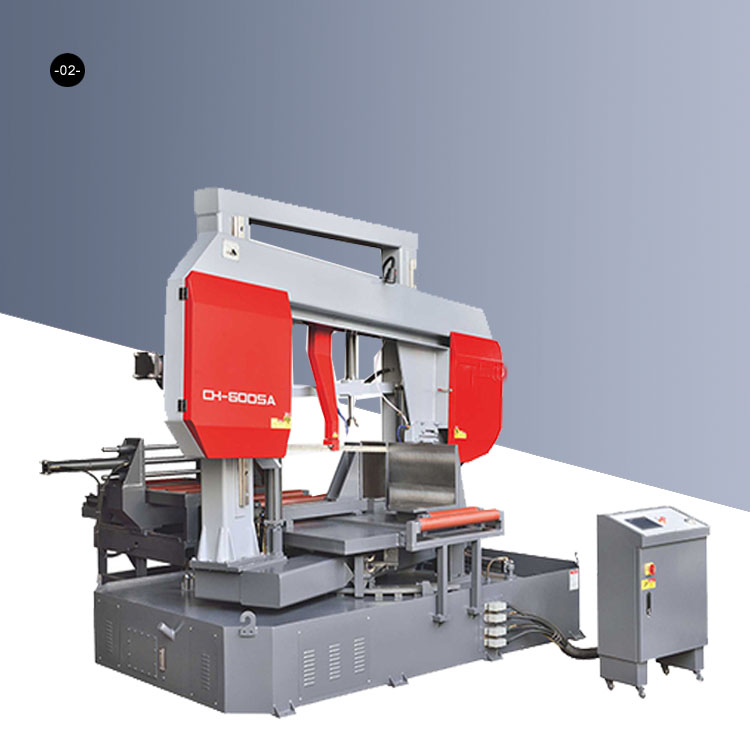

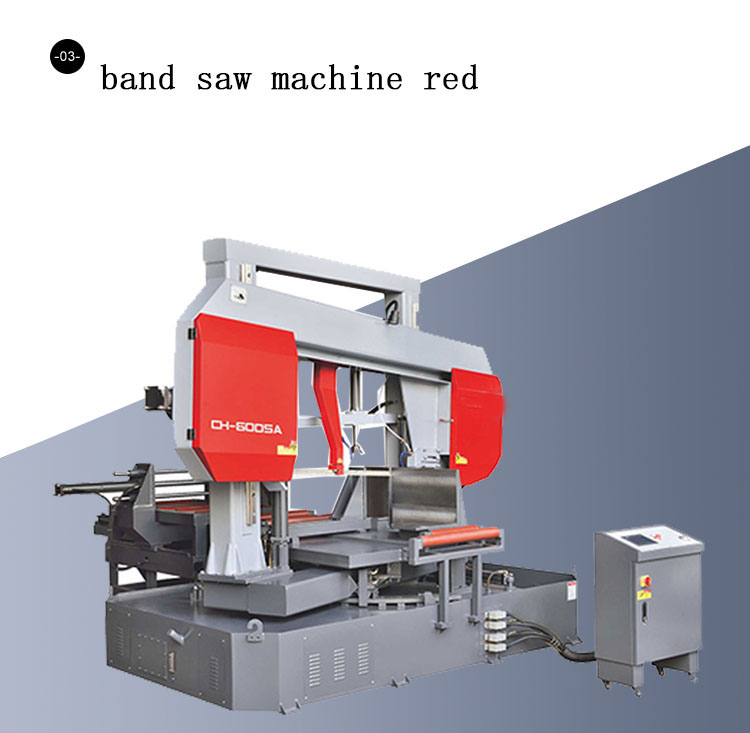

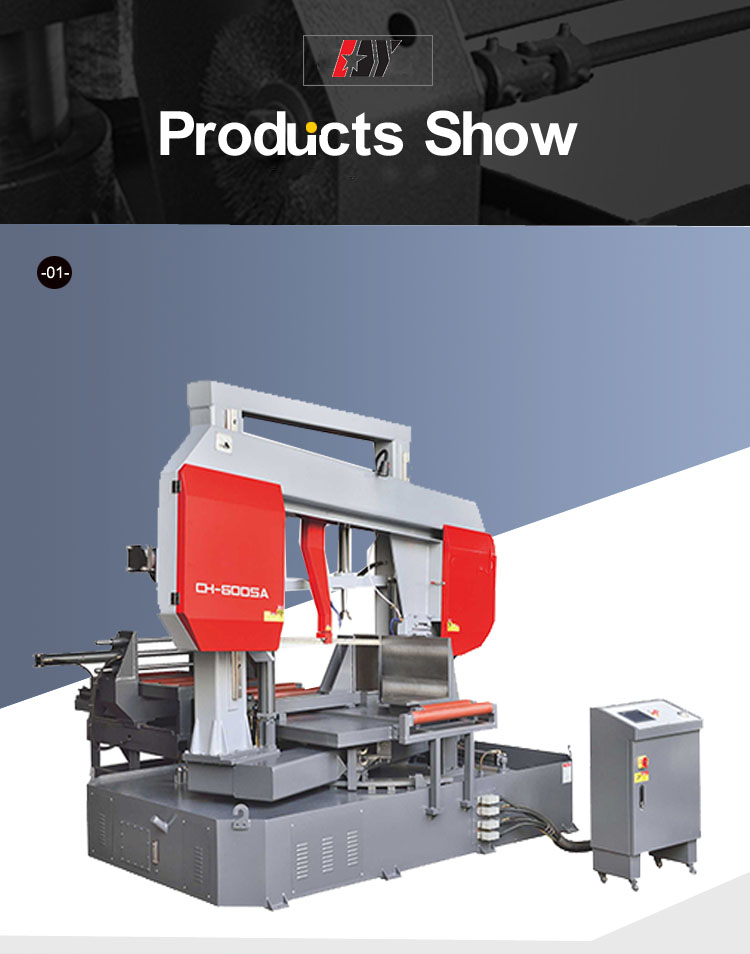

Automatic type double horizontal angle metal band saw china enquiry@heiyangroup.com,86-17743624140
Feature:
¡ñ Mainly suitable for steel structure, bridges and other industries large I-beam, H steel, steel channel angle sawing;
¡ñ Saw belt speed frequency conversion stepless speed regulation;
¡ñ Hydraulic rotation angle, hydraulic locking, rotary encoder automatically detect rotation angle;
¡ñ PLC automatic control, touch screen operation, but not many sets of feed length, feed times;
¡ñ Hydraulic automatic feeding, high feeding accuracy, good stability.
Specification:
| Sawing Capacity(mm) |
45¡ã / 600 90¡ã / 700w x 600h |
Band saw wire speed (m/min) | 20~90 |
| Band saw wire specifications (mm) | 41 x 1.3 x 9850 | Main motor power(kw) | 7.5 |
| Hydraulic motor (kw) | 1.5 | Cooling pump (kw) | 0.09 |
| Angle rotation mode | Hydraulic cylinder drive + rotary encoder | Saw hydraulic tank capacity (L) | 100 |
| Cooling box capacity (L) | 200 | Feeding mode | Hydraulic pressureAutomatic feeding (cylinder + grating ruler) |
| Overall size (mm) | 4400 x 3100 x 2400 | Height of table (mm) | 990 |
