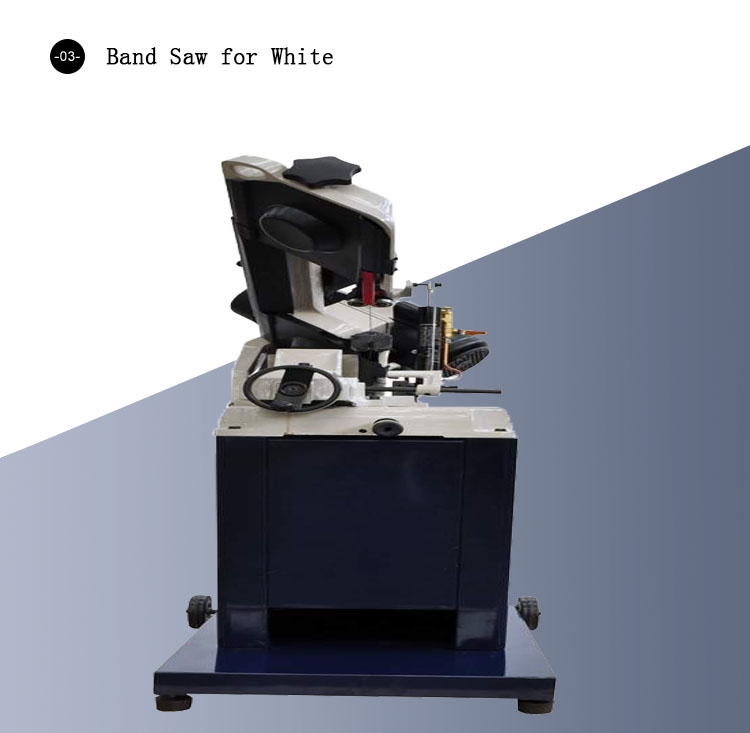

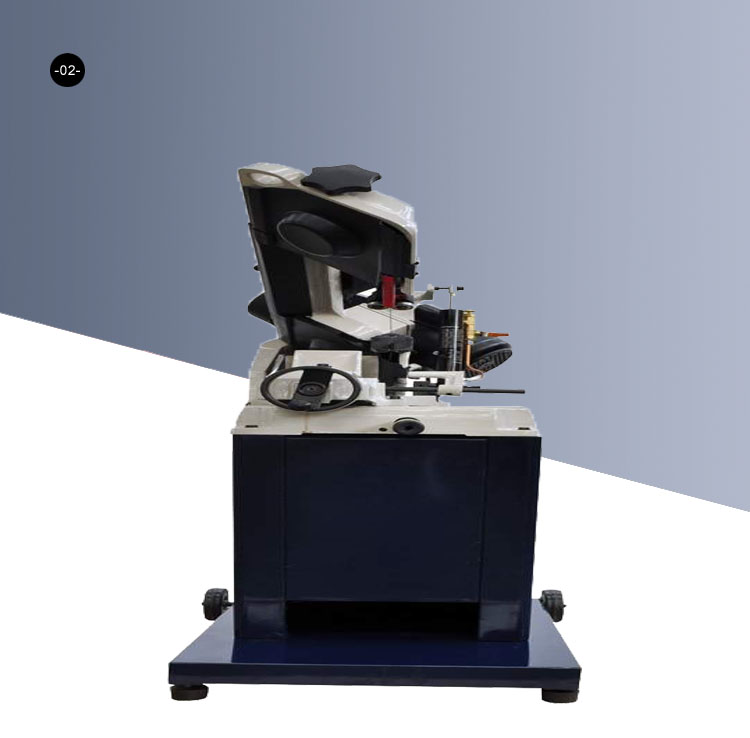

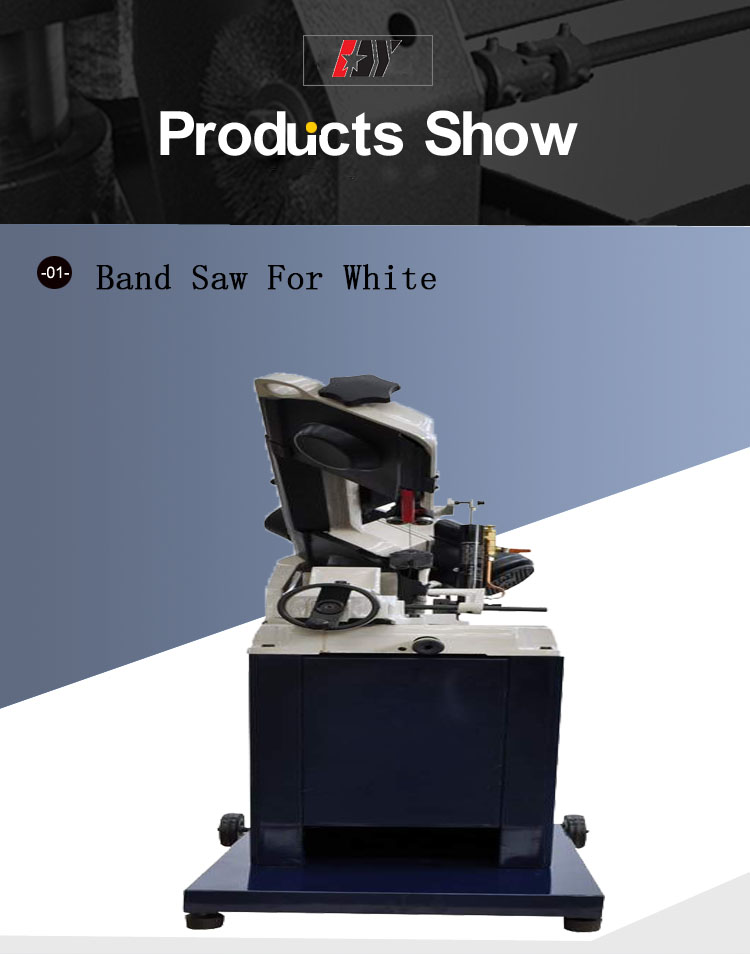

Metal Cutting Bandsaw With Swivel Head

FEATURES:

·         A. Easy to carry to any work sites.

·         B. Angle cutting from -45° - +60°.

·         C. Vertical cutting position.

·         D. Auto down feed design.

·         E. Swivel head.

·         F. All ball bearing drive wheel and blade guides.

SPECIFICATIONS:

·         A. Motor: 1/2 HP 110V/220V, single phase, 60 Hz, prewired 110 V.

·         B. V-belt drive.

·         C. Capacity round @ 0° 5".

·         D. Capacity rectangular @ 0° 5" x 6".

·         E. Capacity round @ 45 ° 3-3/4".

·         F. Capacity rectangular @ 45° 3" x 3-3/4".

·         G. Capacity round @ 60° 1-3/4".

·         H. Capacity rectangular @ 60° 1-3/4" x 2-3/16".

·         I. Blade speeds: 77, 112, 196 FPM.

·         J. Overall height: horizontal 42-1/2", vertical 54-3/4".

·         K. Floor to table height: 29".

·         L. Overall width: 23-3/8".

·         M. Overall lenth: 39".

·         N. Table size: 4-1/2" x 12".

·         O. Footprint: 26-1/2" x 20-1/2".

·         P. Angular cuts: -45° to +60°.

·         Q. Blade size: 64-1/2" x 1/2" x 0.025".

·         R. Packing Size: 38" X 30" X 26"

·         S. Net and shipping weight: 242 LBS, 308 LBS.
