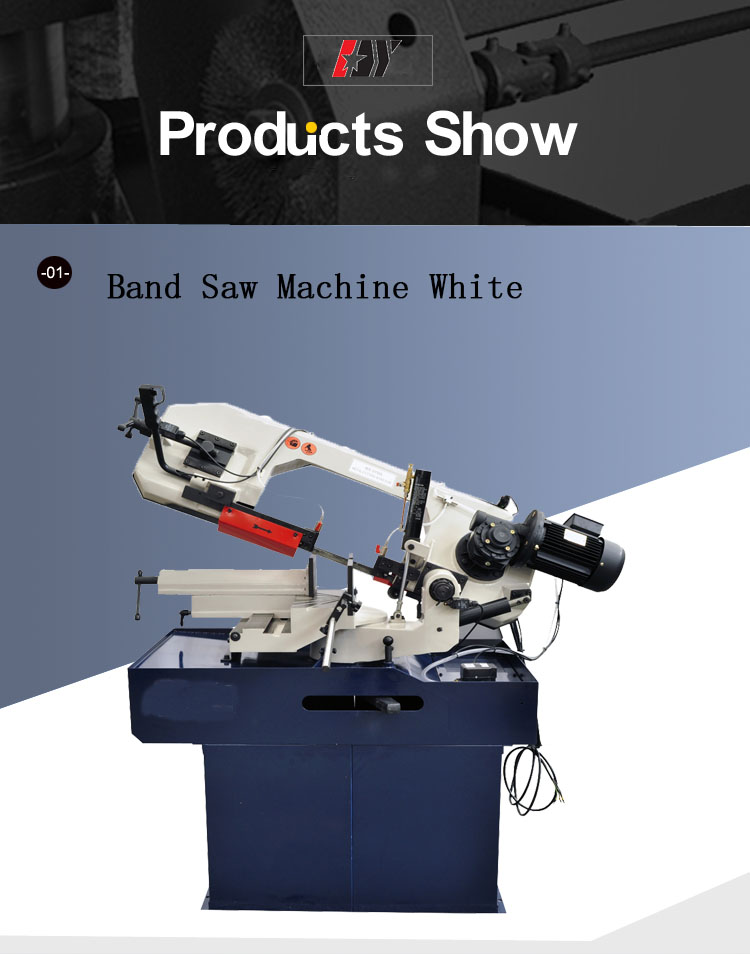

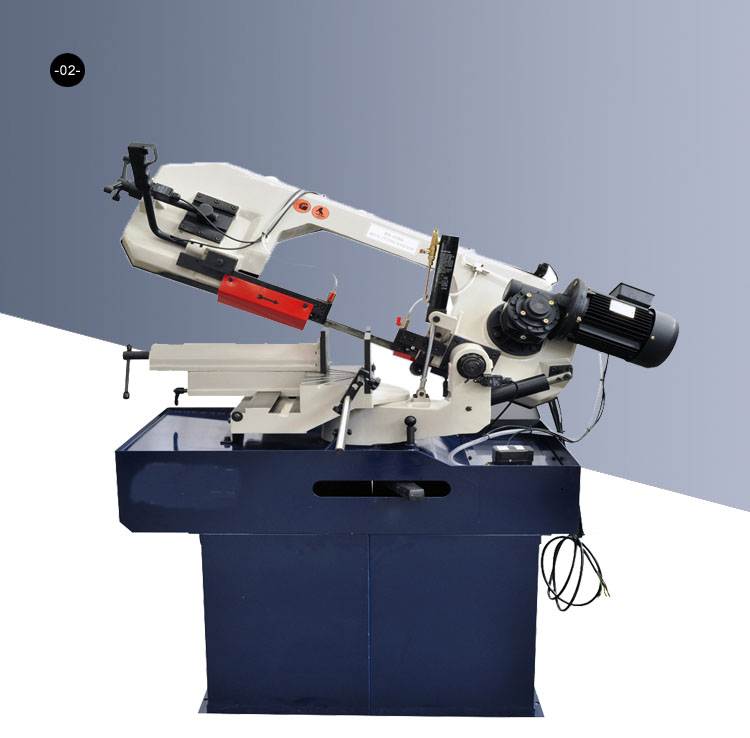

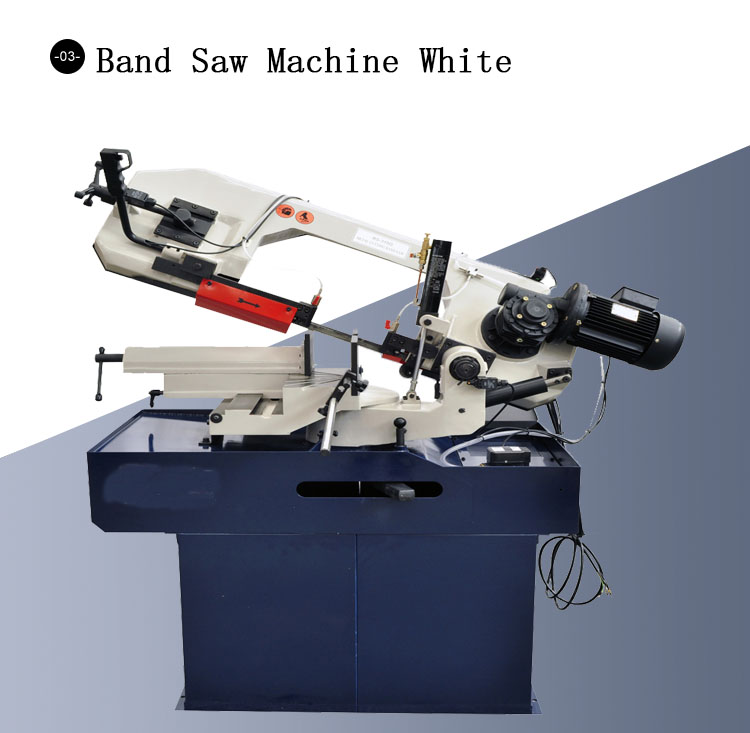

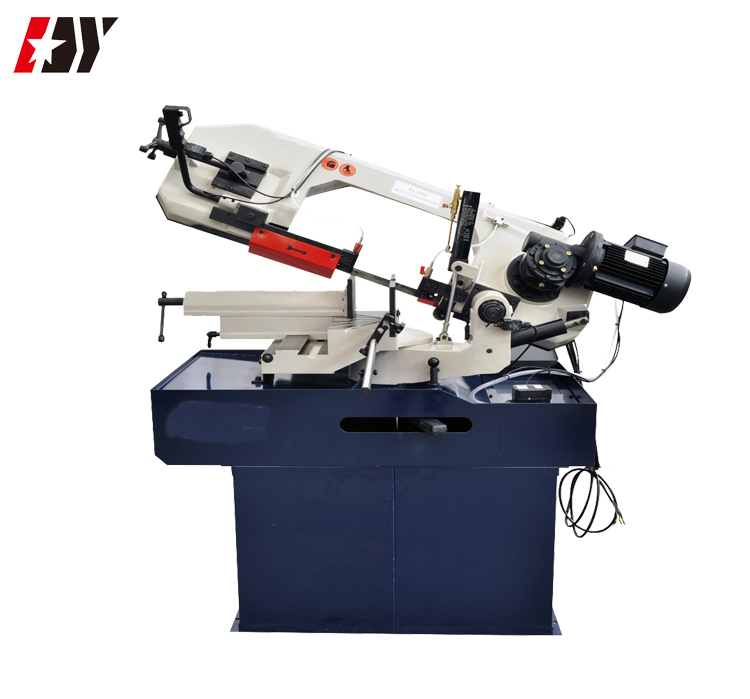

13 Inch
x 18 Inch Metal Cutting Band Saw With Swivel Base & PLC
FEATURES:
·
High capacity band control by
two speed motor.
·
Vertical rotation on bolt with
adjustable tapered bearings without backlash.
·
Band stretching is obtained by
electro-mechanical blade tensioner with micro switch.
·
Hydraulic clamping vise.
·
Swivel on both sides.
·
Electric coolant system.
·
Display control panel.
SPECIFICATIONS:
·
Motor: 3 HP, 220V/440V, 3
Phase, prewired 220V.
·
Gear drive.
·
Capacity round @ 90°: 13".
·
Capacity rectangular @ 90°:
18" x 10".
·
Capacity round @ 60°: 8".
·
Capacity rectangular @ 60 °:
8" x 10"
·
Capacity round@±45°: 12".
·
Capacity rectangular @ °45°:
12" x 10"
·
Blade speed: 153-1/2
FPM,307-1/4 FPM.
·
Blade size: 156" x 1"
x 0.035"
·
Packing size: 91" x
42" x 64".
·
Net weight and shipping weight:
1716 LBS, 1826 LBS
