China portable band saw machine metal cutting factory price

1.saw frame travels across solid dual-column guides 2.rigid, adjustable saw blade guides prevent lateral escape of the saw blade and ensure maximum angular accuracy 3.ideally positioned control panel within comfortable reach on top of the saw frame

Model BS-260G Capacity Circular ◎ 90° (9.1") 227mm Rectangular ▀ 90° (10*4.3") 250*110mm Circular◎ 60° (3.5") 90mm Rectangular ▀ 60° (3.3*3.3") 85*85mm Circular◎ 45° (6") 150mm Rectangular ▀ 45° (7.9*5") 350*125mm Blade speed 50Hz 2P 72MPM 236FPM 4P ,38MPM, 118 FPM Blade size 27*0.9*2455mm Motor power 0.75/1.1kw 1/1 5HP (3PH) Drive Gear Packing Size 146*72*110cm N.W/G.W 190/263kgs

Model BS-170G Capacity Circular ◎ 90° (6.7") 170mm Rectangular ▀ 90° (8.7*8.3") 170*210mm Circular◎ 60° (2.7") 70mm Rectangular ▀ 60° (2.3*2.3") 60*60mm Circular◎ 45° (4.7") 120mm Rectangular ▀ 45° (4.3*4.3") 110*110mm Blade speed 50Hz 2P 80MPM 262FPM 4P ,42MPM, 131 FPM Blade size 20*0.9*2085mm Motor power 0.75/1.1kw 1/1.5HP (3PH) Drive Gear Packing Size 125*72*100cm N.W/G.W 170/202kgs

Model BS-215G Capacity Circular ◎ 90° (6") 150mm Rectangular ▀ 90° (7.8*4.7") 200*120mm Circular◎ 60° Rectangular ▀ 60° Circular◎ 45° (4") 120mm Rectangular ▀ 45° (5*3.5") 130*90mm Blade speed 50Hz 40/80 MPM Blade size 20*0.9*2050mm Motor power 1.6/0.85kw 0.8/1.1HP (3HP) Drive Gear Packing Size 116*7.1*79,61*39*57cm (standard) N.W/G.W 82 / 102kg

Model BS-280G Capacity Circular ◎ 90° (8.6") 220mm Rectangular ▀ 90° (10*4.3") 250*155mm Circular◎ 60° (4") 100mm Rectangular ▀ 60° (3.1*3.7") 80*95mm Circular◎ 45° (8") 160mm Rectangular ▀ 45° (8.3*4.3") 160*110mm Blade speed 50Hz 40/80 MPM Blade size 27*0.9*2450mm Motor power 0.75/1.1kw 1/1.5HP (3HP) Drive Gear Packing Size 133*40*105 67*40*62cm (standard) N.W/G.W 254 / 287kg

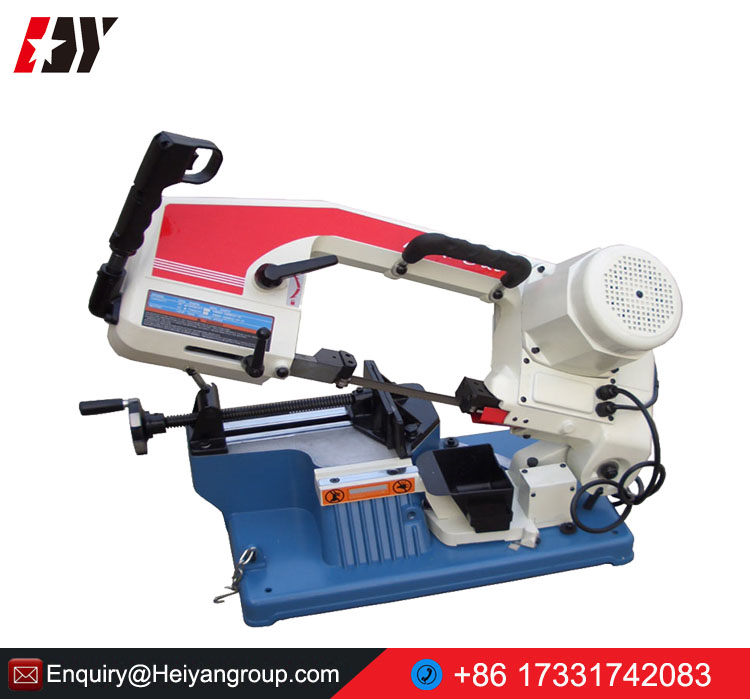

Portable band saw angle cutting enquiry@heiyangroup.com,86-17743624140
