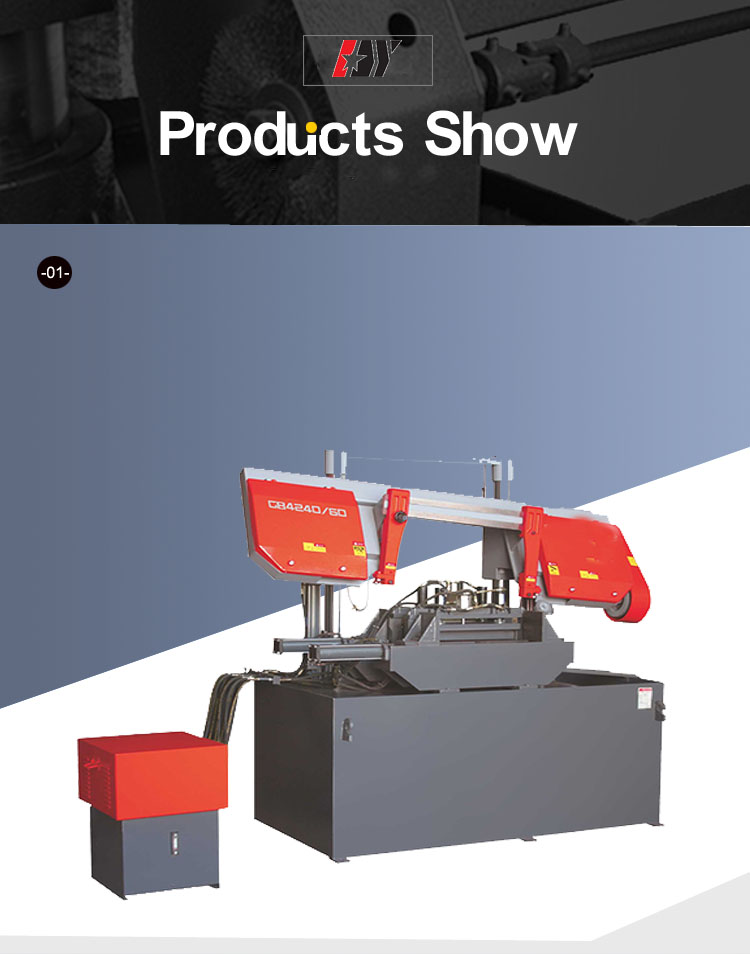

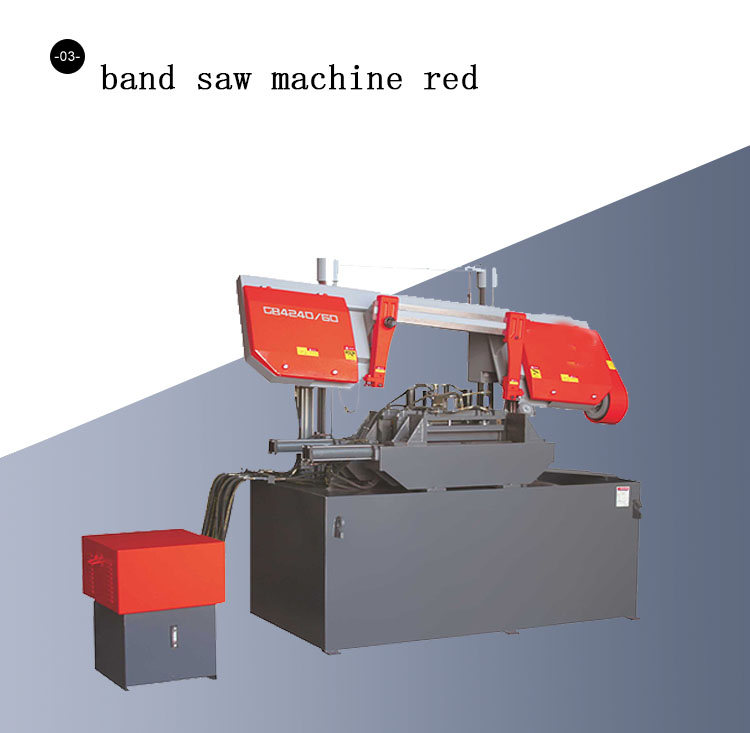

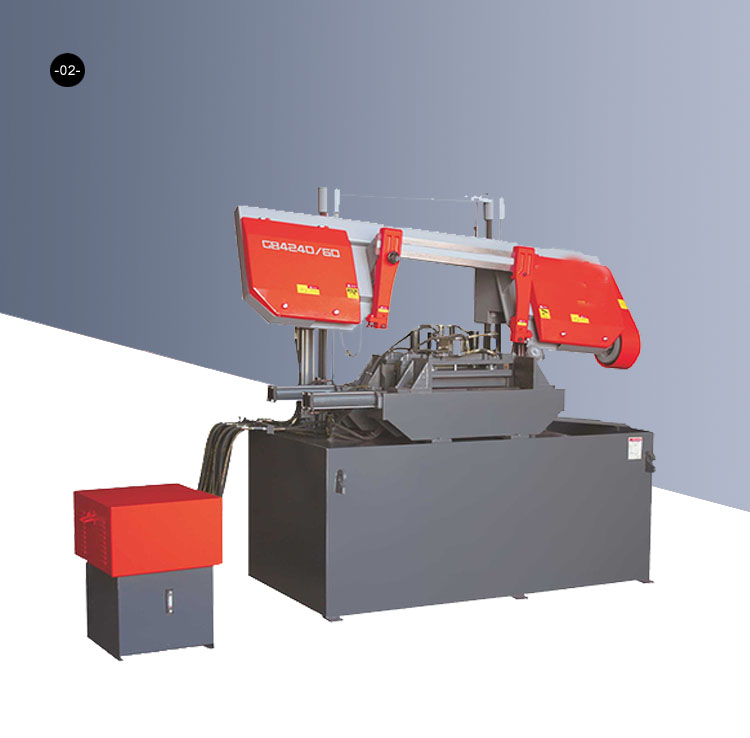

Thread steel cutting band saw machine

Thread steel cutting
● Used for on-line sawing in front of the furnace, and matching with the tractor;
● HHydraulic control saw feed, stepless adjustable
● The workpiece is clamped by hydraulic double vice, so that sawing is more stable;
● Belt saw blade adopts rolling bearing and carbide alloy guide to prolong the service life of saw blade;

● The band saw has a pneumatic leveling device to improve the length cycle accuracy of the thread steel.

Specification:

Sawing Capacity (mm)	50 / 50 x 600	Band saw wire speed (m/min)	25 / 35 / 50 / 70 / 90
Band saw wire specifications (mm)	41 x 1.3 x 5460	Main motor power (kw)	4 (6P)
Hydraulic motor (kw)	1.5	Cooling pump (kw)	0.06
Work clamping method	Hydraulic vice	Saw blade tensioning method	Manual
Active transmission structure	Turbine drive	Feeding mode	-
Overall size (mm)	2655 x 2320 x 1250	Height of table (mm)	1255

<
