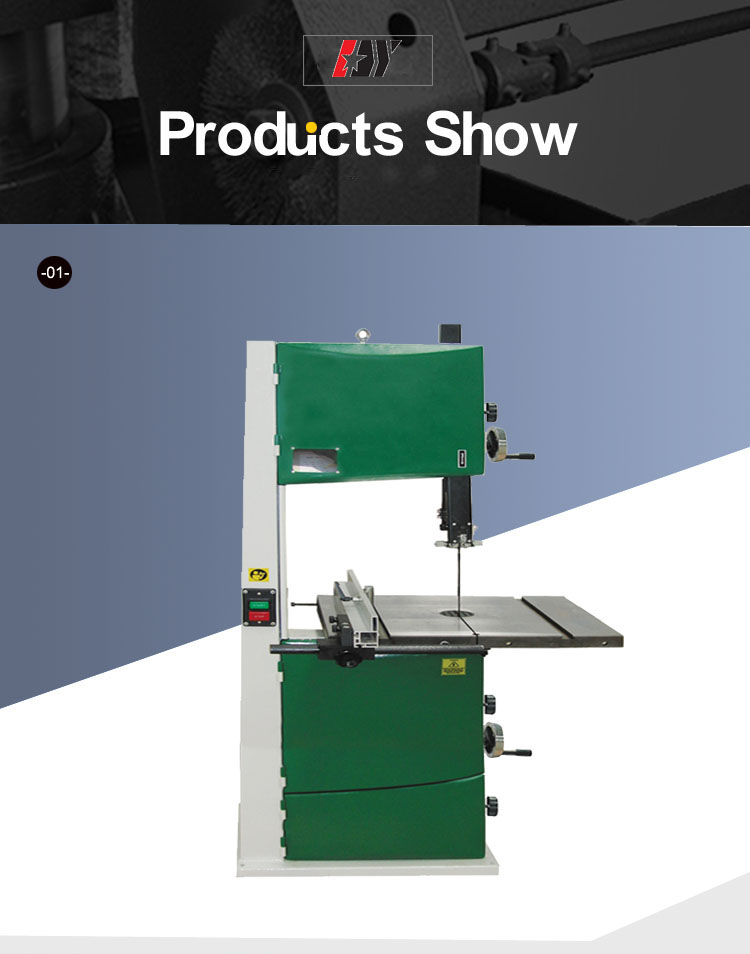

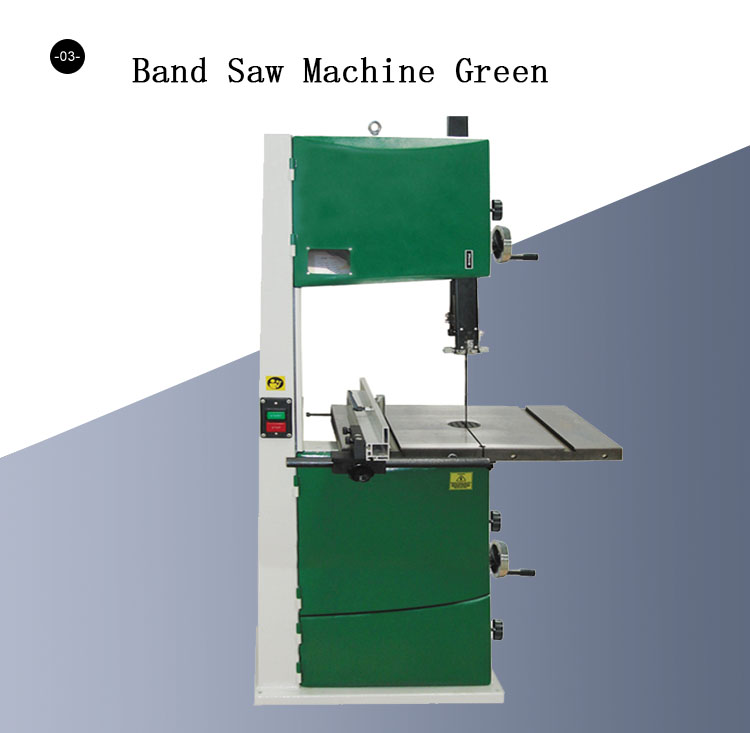

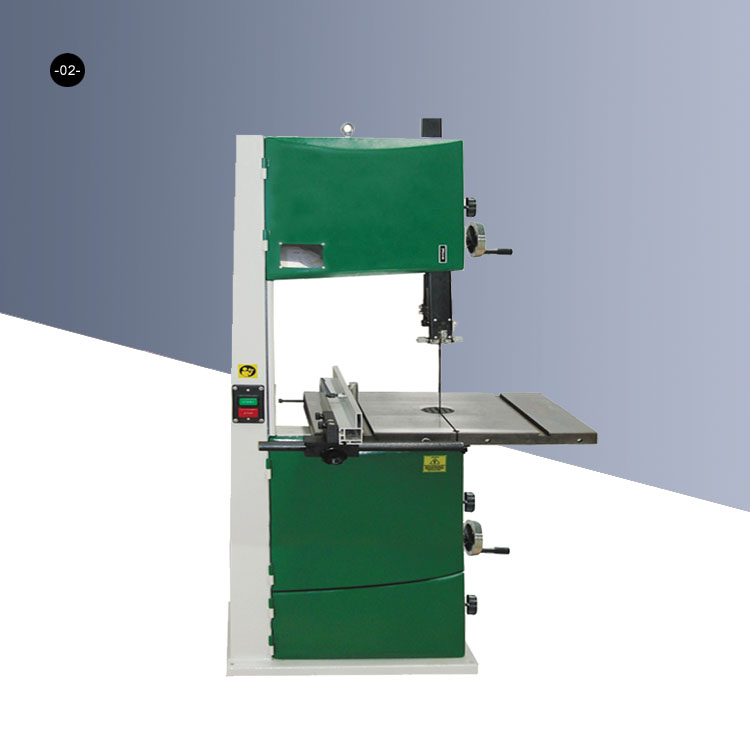

Wood Cutting Band Saw Machine

Vertical band saw

Future: 1.The precision wood cutting band saw is a vertical type. 2.330mm Re-Saw capacity Largest re-saw capacity for slicing veneers, book matched projects and lumber sizing. 3.Quick release blade tension Quickly release the blade tension when changing blades or when machine is off, increasing blade life.

  • Product Description
  • Contact us
  • Future:
    1.The precision wood cutting band saw is a vertical type.
    2.330mm Re-Saw capacity Largest re-saw capacity for slicing veneers, book matched projects and lumber sizing.
    3.Quick release blade tension Quickly release the blade tension when changing blades or when machine is off, increasing blade life.
    4.406x546mm work table Large work space for your material.
    5.Edge facing thrust bearings.Extends blade life and improves stability
    6.2 Speeds 440/900 m/min Allows cutting of non-ferrous materials
    7.Hinged blade guide with sight window Easy access blade changes and workpiece visibility
    8.99mm dust port Attach your dust collection system for a cleaner work environment.
    9.Blade tension window Check your blade tension without opening the doorm
    10.Heavy duty fence with drift adjustment Blade drift in your workpiece can be easily adjusted.  The fence can be mounted right or left of the blade; includes re-saw bar.
    11.The saw blade of the woodcutting bandsaw has a fine-tuning guide bearing to ensure the       cutting precision.
    12.There is a wheel gear and toothed ring under the large working table which facilitates the     rotation.
    13.The wood cutting bandsaw is equipped with a movable guide rail on the working table.
    13.The wood cutting band saw can be combined with a dust collection device whose bore diameter   is 99MM so it can maintain a clean environment.

    Specification:

    Item No. 571007
    Model TBS-457
    Cutting capacity Height 3305 mm
    Width 467 mm
    Blade Width 6-32mm
    Length 3607 mm
    Table Size 533¡Á483 mm
    Left tilt 10¡ã
    Right tilt 45¡ã
    Groove ¡°T¡± slot (2)10¡Á19 mm
    Height to floor 1959 mm
    Motor Amps 11A
    Horsepower 2.2kW/3HP
    Volts 115/230V
    Speed capacity 2
    Speed range 460/980 m/min
    Overall Height 1930 mm
    Width 969 mm
    Depth 694 mm
    Net weight 176 kgs
