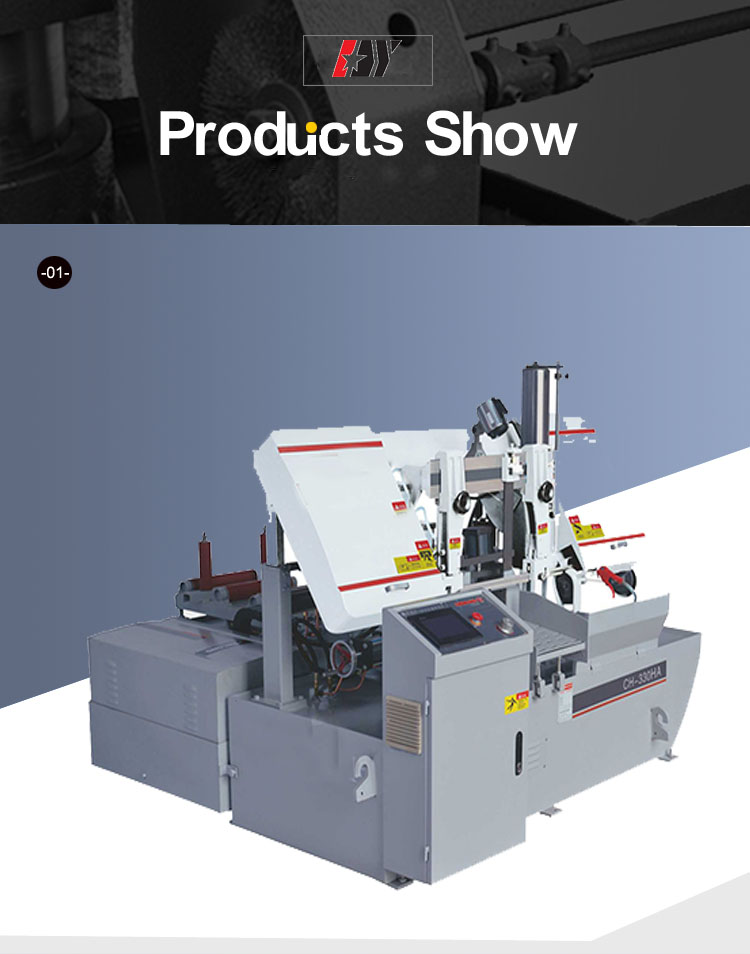

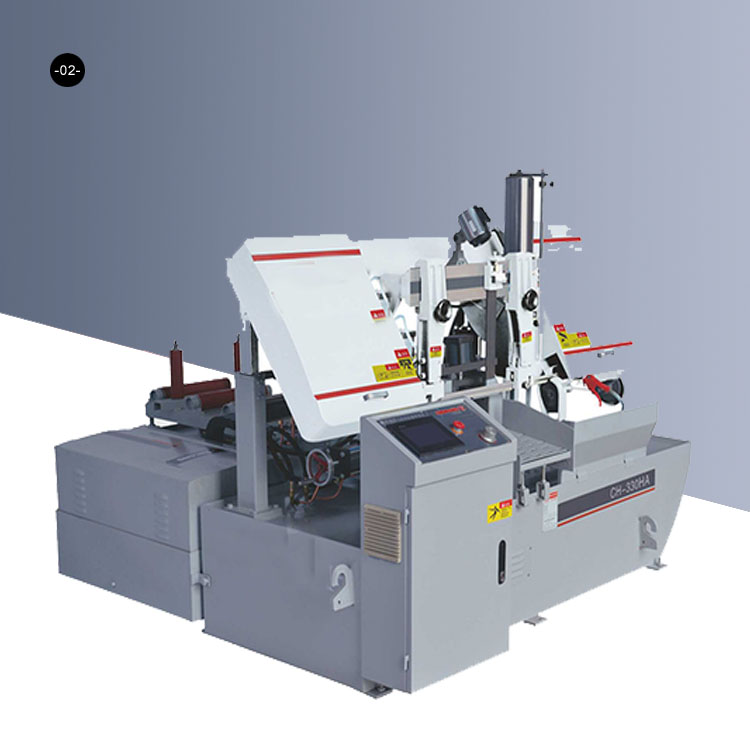

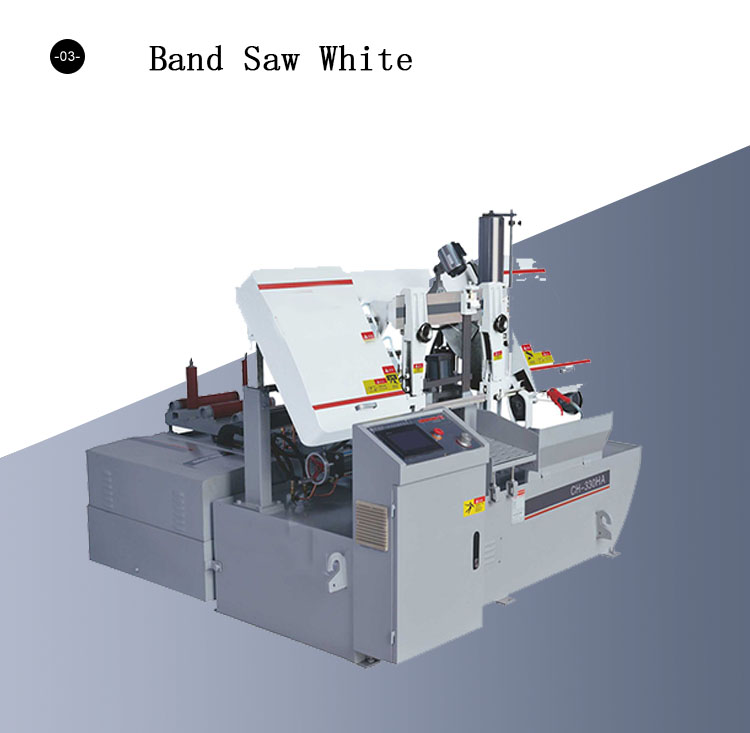

CH automatic horizontal metal band sawing machine

Feture:

● The utility model is mainly used for sawing small and medium-sized bar materials, pipe materials and profiles, and can be suitable for sawing and cutting various ferrous metal materials. The utility model has the advantages of high cutting efficiency, energy saving, narrow saw hole, energy saving, material saving, simple operation, etc.
● Double column structure is adopted to ensure the reliability, stability and cash performance of the structure. Each part of the structure has sufficient margin, and also ensures high quality cutting accuracy.
Specification:

Sawing Capacity(mm)	330/ 330 x 330h/ 150w x 280h	Band saw wire speed (m/min)	25 / 44 / 63 / 81
Band saw wire specifications (mm)	34x 1.1 x 4115	Main motor power (kw)	5.5
Hydraulic motor (kw)	0.75	Cooling pump (kw)	0.06
Work clamping method	Hydraulic vice	Saw blade tensioning method	Manual
Main drive structure	Turbine drive	Feeding mode	Automatic feeding
Overall size (mm)	2200 x 2250 x 1550
