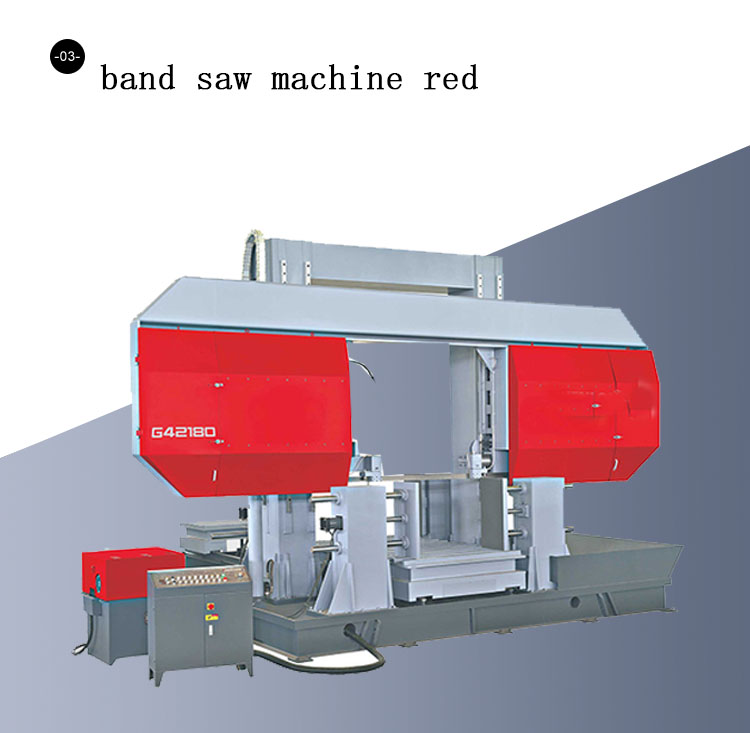

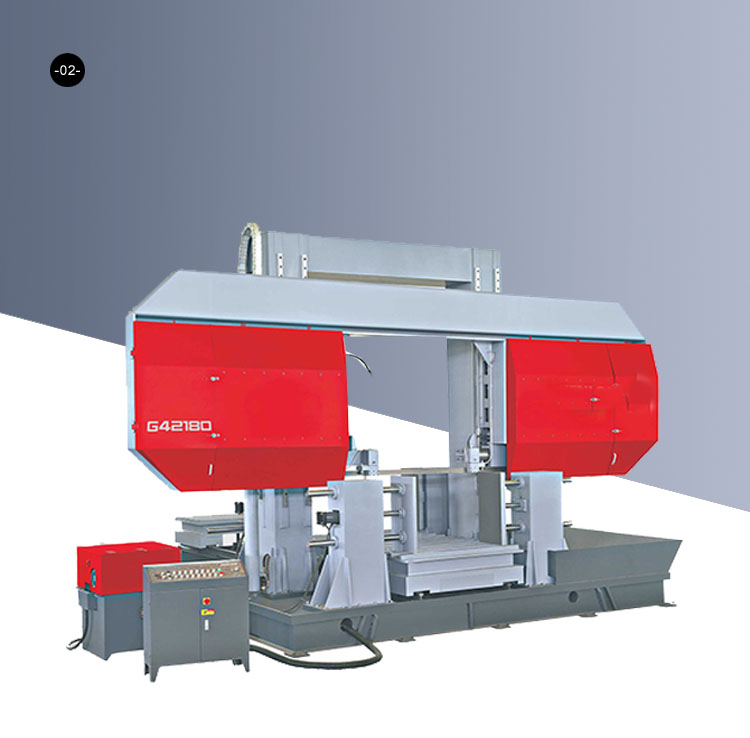

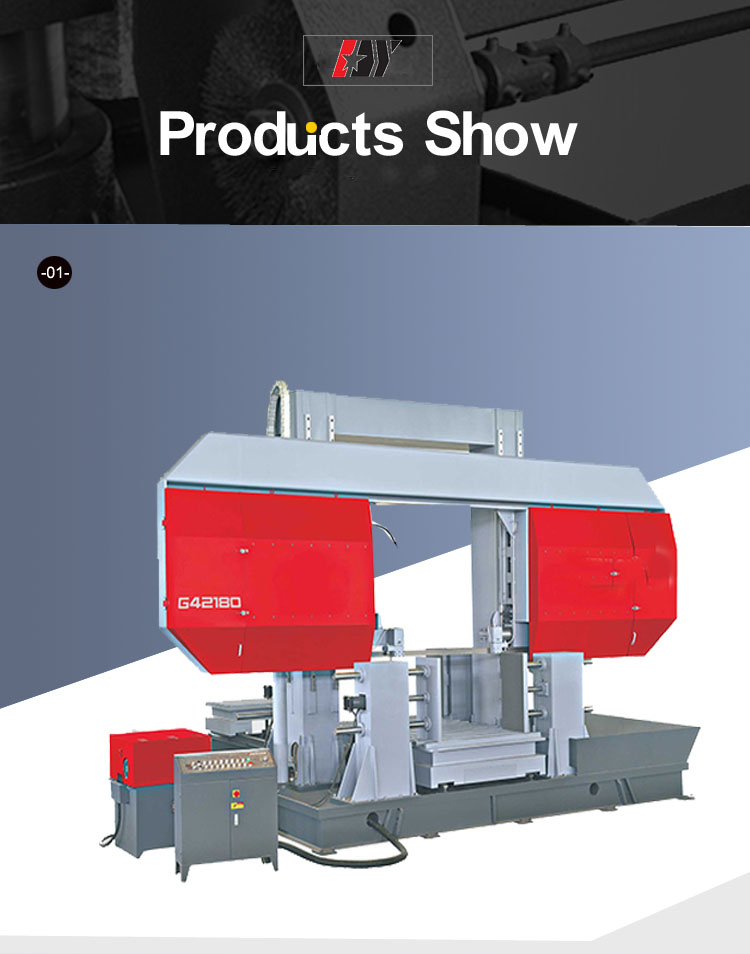

Doulble column longmen horizontal metal band sawing machine

Future:

● Hydraulic control sawing feed.

● High precision linear guide rail with high cutting precision.

● Longmen type structure, good rigidity.

● Dual cylinder control, smooth feed.

● Motor feeding roller track and bearing roller track.

● Optional chip removal device.

Specification

Sawing Capacity (mm)	1800 / 1800w x 1800h	Band saw wire speed (m/min)	10~50
Band saw wire specifications (mm)	80 x 1.6 x 17000	Main motor power (kw)	18.5 (4p)
Hydraulic motor (kw)	5.5 + 1.5	Cooling pump (kw)	0.37
Work clamping method	Hydraulic vice	Saw blade tensioning method	Hydraulic pressure
Main drive structure	Gear reducer	Feeding mode	Drum / pulley
Overall size (mm)	6800 x 4000 x 4100	Height of table (mm)	1050
